Wiring Guide

Make sure that you connect the device to Line and Neutral wires properly before start using the device.

Must install and use the product by following the technical specification of the manufacturer

  • Voltage : 90-250v AC (50/60Hz)
  • Max current/ watts : according to the model (please see on the packaging)
  • WiFi : 2.4Ghz
  • Operating Temp 0-40 C
  • Operating Hum 5%-90%

Must follow the installation manual : please see the detail in www.labi.co.th <Click>

Must install the product properly by following the electrical engineering standard

Indoor installation only, keep the product far away from rain/water

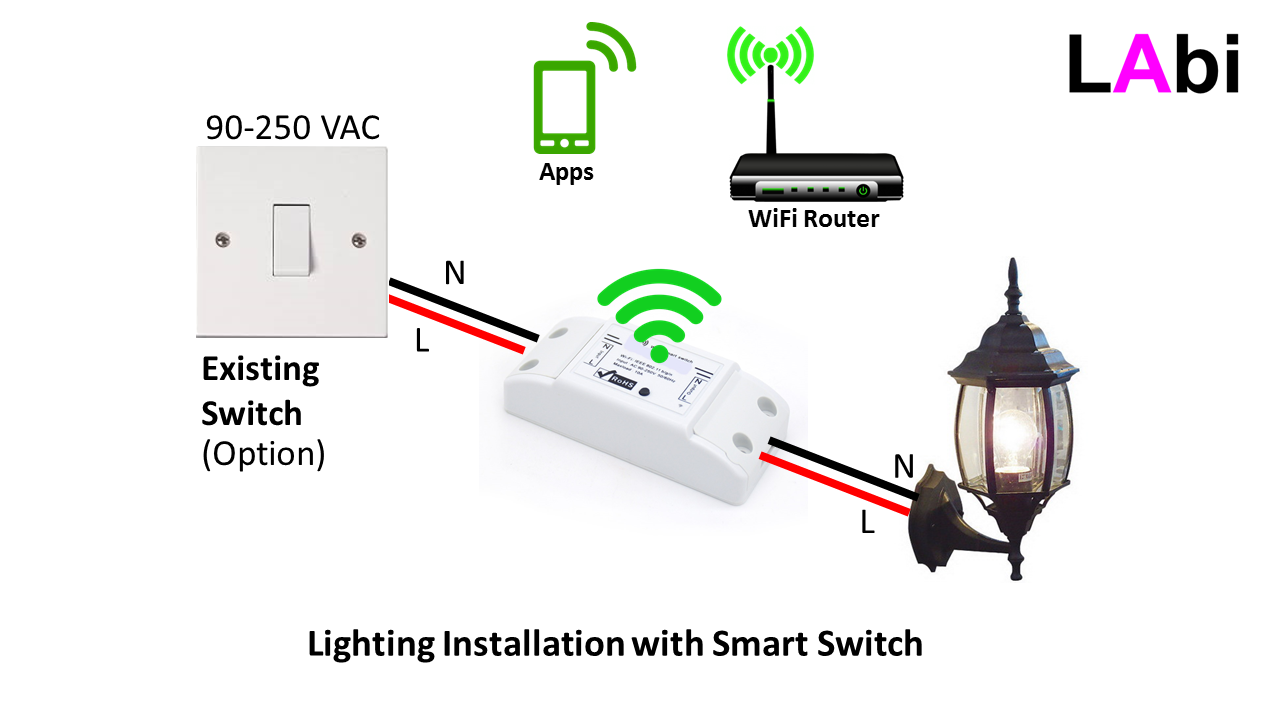

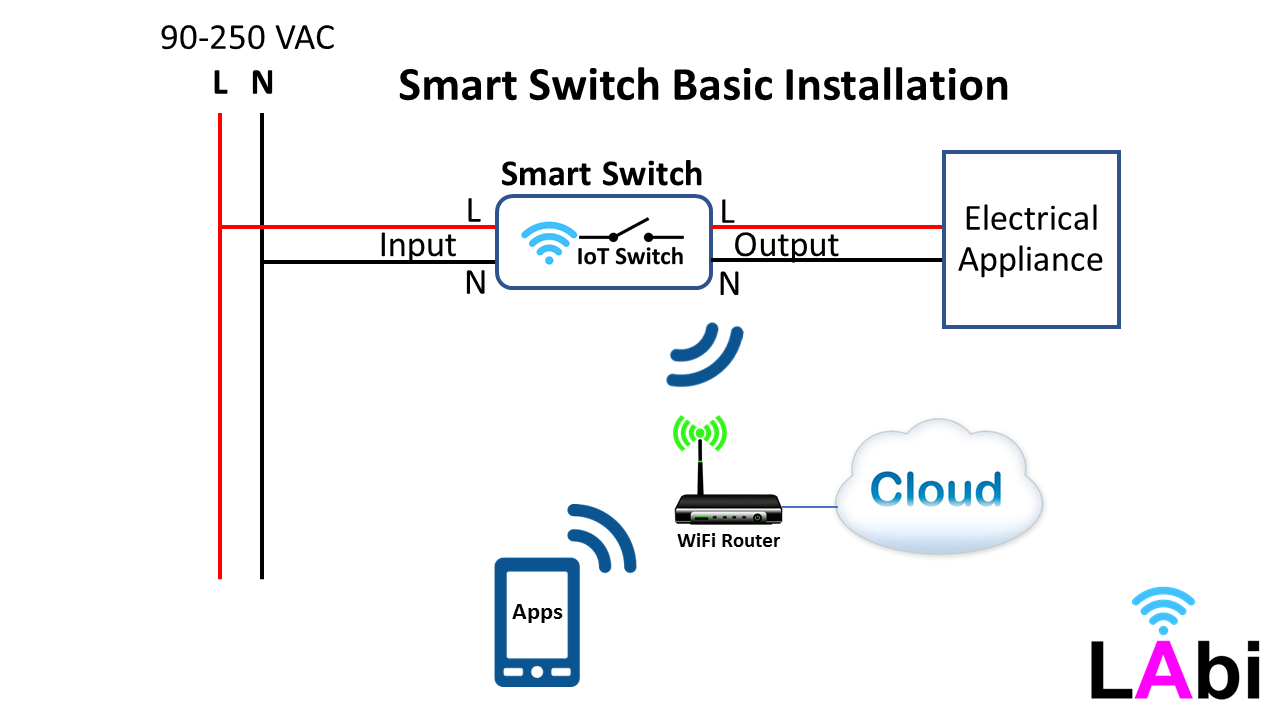

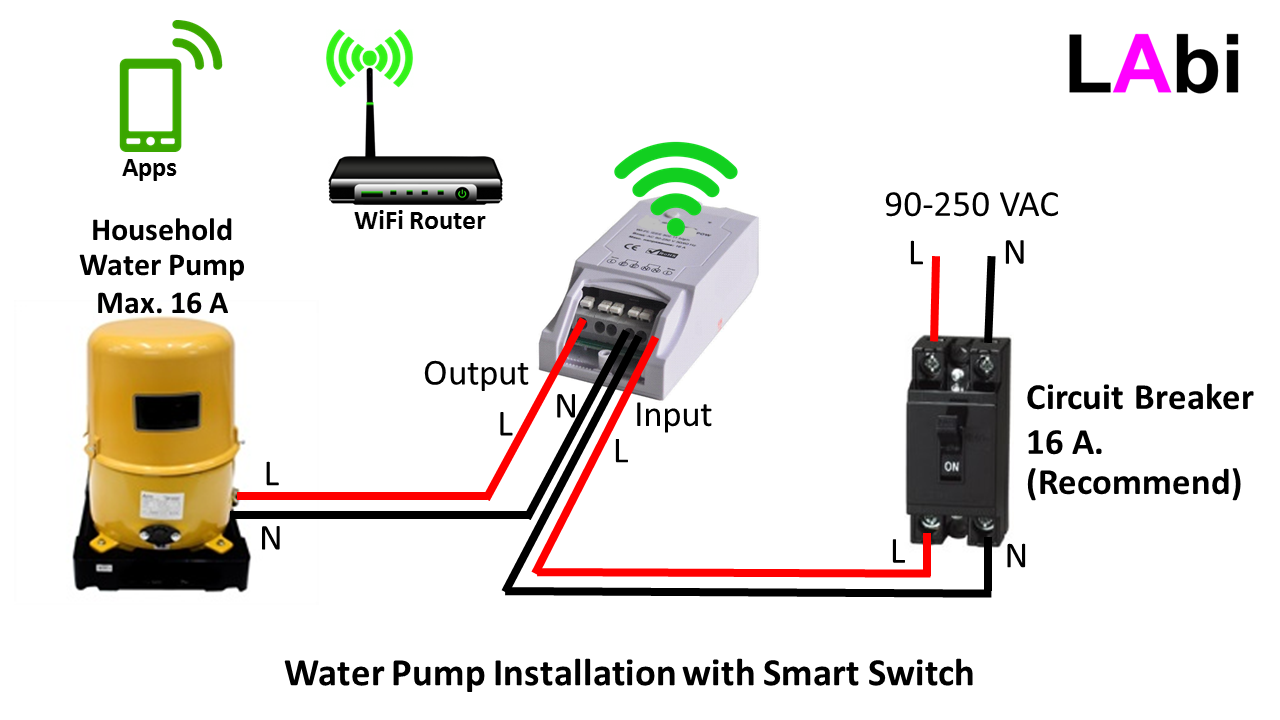

Below pictures are wiring guideline and samples.
